Belden REVConnect Cat5e Modular Jack - T568 A/B - Metal

Cat6+ | REVConnect | T568 A/B | Metal
Quantity Discount Pricing
1-24 25-49 50-99 100-249 250+
$15.99 $15.79 $15.59 $15.39 $15.19

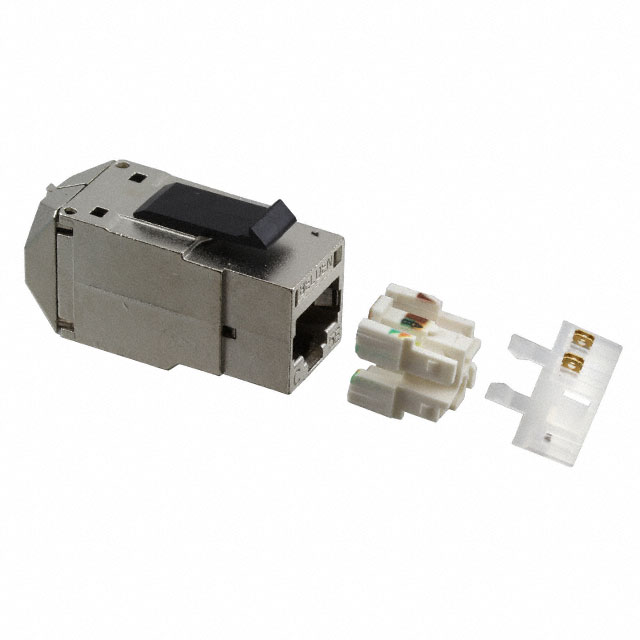

Belden REVConnect Cat5e Modular Jack - T568 A/B - Metal

Belden presents REVConnect - a complete connectivity solution for CAT5e. The REVConnect system is designed to make deployment easier and put hours back in your day. Increasing the speed of your installation will allow you to complete more jobs and increase your overall revenue. The REVConnect system provides maximum reliability and ease of install for the contractor.


  • Footprint/Type: KeyConnect
  • Tool Compatibility: REVConnect Termination Tool (p/n RVUTT01)
  • Plug /Jack Compatibility: RJ45, RJ11
  • Termination Front Connection: Mated Connection
  • Termination Front Connection Durability: 750 cycles
  • Termination Rear Connection: Mated Connection
  • Termination Rear Connection Durability: 20 cycles
  • Cable/Connector Retention: 15 lbs.
  • Connector/Hardware Retention: 20 lbs
  • Plug/Connector Retention: 11.250 lbs
  • REVConnect Cores Not Included


  • UL Rating: UL94V-0
  • Data Category: Category 5e
  • Telecommunications Standards: Category 5e - TIA 568.C.2, Category 5 - ISO/IEC 11801:2002 Ed.2
  • IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over
  • HDBaseTTM (up to 100W)
  • Other Specification: UL 1863, IEC 60603-7, FCC part 68-F
