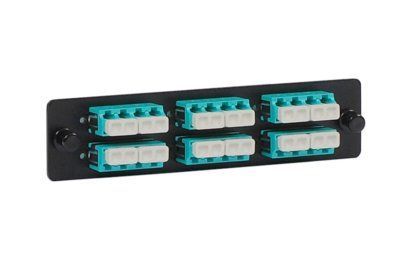

ICC 10GB High Density Adapter Panel - LC Quad - 12 Duplex - Metal

SKU
ICFOPL161G
Multimode Only | 1 Panel Space | Stainless Steel | Push Pins | Neat & Clean Appearance
Quantity Discount Pricing
1-2 3-5 6-7 8-9 10+
$32.99 $32.05 $31.12 $30.20 $29.30

This HD 10GB ICC adapter panel includes 12 duplex/24 simplex LC adapters with metal ferrules.  It is compatible with all ICC fiber enclosures. The adapters work with 10GB multimode configurations.

Features:

  • Includes 12 pre-loaded duplex adapters
  • Provides a neat and clean appearance
  • Fits all ICC fiber enclosures
  • Constructed of stainless steel
  • Push pins allow a secure fit
Write Your Own Review
You're reviewing:ICC 10GB High Density Adapter Panel - LC Quad - 12 Duplex - Metal
Your Rating

Proposition 65

WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

RoHS*

Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment in the European Union.  It stands for Restriction of Hazardous Substances Directive.

REACH*
REACH, a European Union regulation addresses the production and use of chemical substances and their potential impacts on both human health and the environment.  It stands for Registration, Evaluation, Authorisation, and Restriction of chemicals.

WEEE*

The WEEE Directive set collection, recycling and recovery targets for all types of electrical goods in the European community.  It stands for Wate Electrical and Electronic Equipment Directive.

* The following information is for information purposes only.  It does not guarantee that the product adheres to the following standards.  Please check the product description for specific certifications.

What is the difference between simplex and duplex?


A simplex cable contains a single fiber within a jacket. It can be terminated with one connector at each end.  A duplex cable combines two simplex cables in seperate jacketing with two connectors at each end. It is often referred to as a zipcord.  A simplex adapter and patch cable can only send data in one direction at a time; a duplex adapter and patch cable allows data to be sent and received simultaneously.  Simplex adapters are not compatible with duplex patch cables.


Can I use any fiber patch cable in my network with my enclosure?


If your fiber enclosure is loaded you must have cables that are compatible with the included adapters.  For unloaded enclosures you must select adapter panels which correspond to your fiber connector type or use a splice tray for single- and mass-fusing.


What is the difference between a port an adapter and a splice?


The number of ports refers to the number of openings in the panel. A compatible adapter will fit into one port. If the adapter is duplex two connections can be made through one port.  Most adapters are preloaded with a specific style of adapter. A splice is the mechanical bonding of two seperate data lines. With splice trays more data lines can be connected in an enclosure but splicing does not offer the ability to hot swap data lines that adapters allow.


Should I select a metal or ceramic ferrule?


The type of internal sleeve required is determined by the type of connector cladding that your cables have. Select adapter panels with the same type of insulation as your cables.


What are the differences between the fiber connectors?


ST- Uses a push and turn to lock system


SC- Has a molded plug casing with push and pull locking system


LC- Small form factor that resembles an SC connector


MTRJ- Small form factor with a square plastic casing


ST SC
LC MTRJ
