50 Pin Telco / Amphenol Right Angle Male Crimp Connector - Round Cable
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $12.59 | $11.19 | $10.59 | $10.19 | $9.69 |

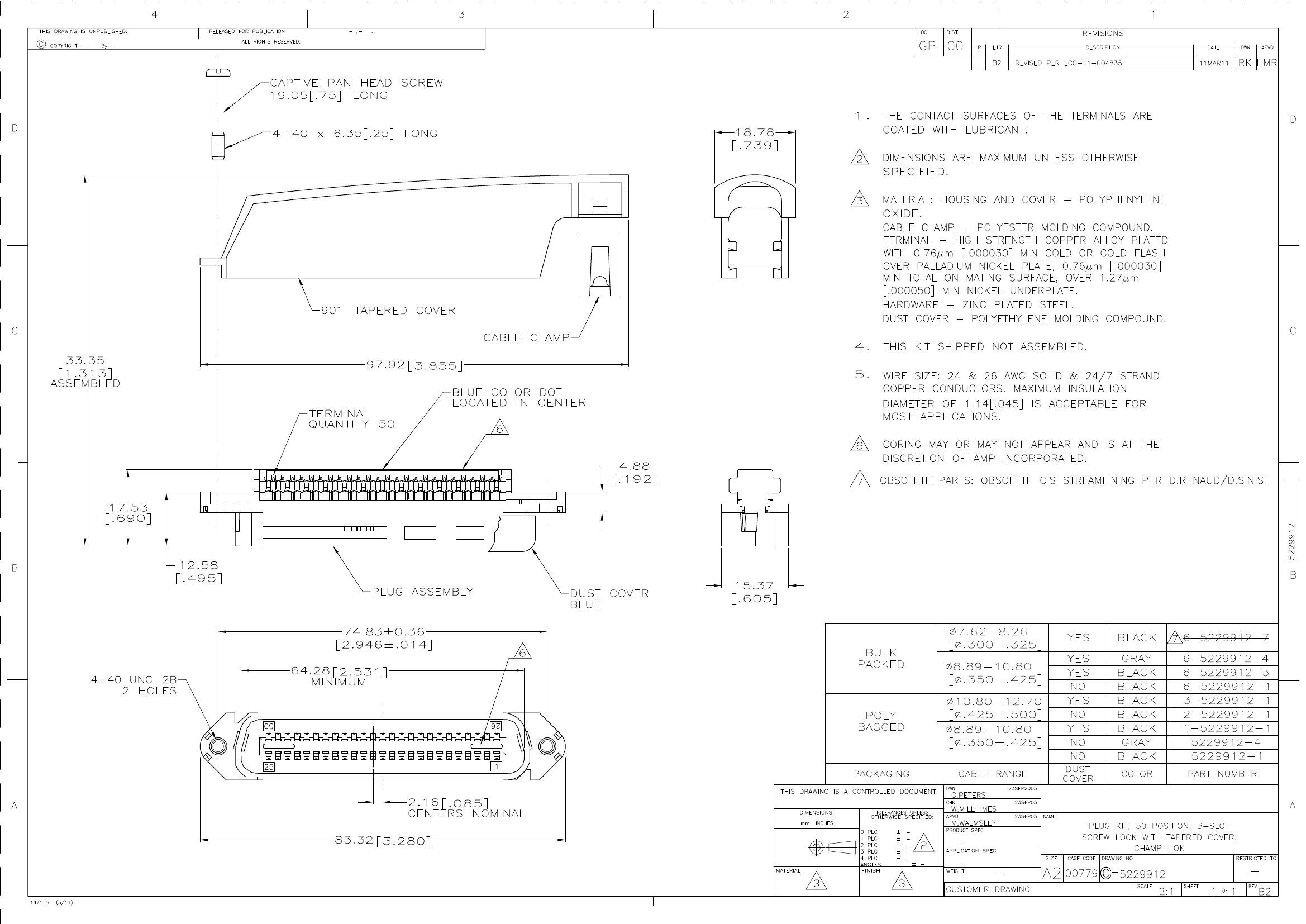

These 50 Pin Male Right Angle Crimp Centronics Connectors are used to terminate the connection type of round cable. They can easily be used to make a custom length cable as well as create a custom pinout, creating a durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Features:
- Connector: Centronics 50 Pin Male
- Crimp Type
- 90 Degree Right Angle
- Plastic Shell
- Gold-Plated Contacts
- For 24 and 26 AWG Wire
- For Use with Round Cable
- Construct Telco and Trunk Cables
Product Questions
Q: What is a Centronics interface?
A: This is the standard interface that is used to connect printers to other devices such as your computer. The 36 pin connectors are known as the IEEE 1284 standard parallel interface and the 50 pin connectors are known as the SCSI-2 interface.
Q: Centronic connectors look pretty similar to the D-Sub connectors. Are they the same thing?
A: No they are not the same thing. They do look similar because of their D-Shaped metal shield but they have different types of contacts. Centronic connectors use ribbon contacts while D-Sub connectors use pin contacts.
Q: What are some other names that Centronic connectors go by?
A: Telco Mini D Ribbon Amphenol Micro Ribbon Miniature Ribbon or Parallel Port are a few different names that you might see for Centronic connectors.
| Centronics Pin | Name | Description |
|---|---|---|
| 1-11 | GND | Ground |
| 12-14 | RES | Reserved |
| 15-25 | GND | Ground |
| 26 | DB0 | Data Bus 0 |
| 27 | DB1 | Data Bus 1 |
| 28 | DB2 | Data Bus 2 |
| 29 | DB3 | Data Bus 3 |
| 30 | DB4 | Data Bus 4 |
| 31 | DB5 | Data Bus 5 |
| 32 | DB6 | Data Bus 6 |
| 33 | DB7 | Data Bus 7 |
| 34 | PARITY | Data Parity (odd parity) |
| 35 | GND | Ground |
| 36 | GND | Ground |
| 37 | GND | Ground |
| 38 | TMPWR | Termination Power |
| 39 | GND | Ground |
| 40 | GND | Ground |
| 41 | /ATN | Attention |
| 42 | - | Not Connected |
| 43 | /BSY | Busy |
| 44 | /ACK | Acknowledge |
| 45 | /RST | Reset |
| 46 | /MSG | Message |
| 47 | /SEL | Select |
| 48 | /C/D | Control/Data |
| 49 | /REQ | Request |
| 50 | /I/O | Input/Output |
| Centronics Pin | Name | Description |
|---|---|---|
| 1 | GND | Ground |
| 2 | +DB0 | +Data Bus 0 |
| 3 | +DB1 | +Data Bus 1 |
| 4 | +DB2 | +Data Bus 2 |
| 5 | +DB3 | +Data Bus 3 |
| 6 | +DB4 | +Data Bus 4 |
| 7 | +DB5 | +Data Bus 5 |
| 8 | +DB6 | +Data Bus 6 |
| 9 | +DB7 | +Data Bus 7 |
| 10 | +DBP | +Data Bus Parity (odd parity) |
| 11 | DIFFSENS | |
| 12 | RES | Reserved |
| 13 | TERMPWR | Termination Power |
| 14 | RES | Reserved |
| 15 | +ATN | +Attention |
| 16 | GND | Ground |
| 17 | +BSY | +Bus is Busy |
| 18 | +ACK | +Acknowledge |
| 19 | +RST | +Reset |
| 20 | +MSG | +Message |
| 21 | +SEL | +Select |
| 22 | +C/D | +Control or Data |
| 23 | +REQ | +Request |
| 24 | +I/O | +In/Out |
| 25 | GND | Ground |
| 26 | GND | Ground |
| 27 | -DB0 | -Data Bus 0 |
| 28 | -DB1 | -Data Bus 1 |
| 29 | -DB2 | -Data Bus 2 |
| 30 | -DB3 | -Data Bus 3 |
| 31 | -DB4 | -Data Bus 4 |
| 32 | -DB5 | -Data Bus 5 |
| 33 | -DB6 | -Data Bus 6 |
| 34 | -DB7 | -Data Bus 7 |
| 35 | -DBP | -Data Bus Parity (odd parity) |
| 36 | GND | Ground |
| 37 | RES | Reserved |
| 38 | TERMPWR | Termination Power |
| 39 | RES | Reserved |
| 40 | -ATN | -Attention |
| 41 | GND | Ground |
| 42 | -BSY | -Bus is Busy |
| 43 | -ACK | -Acknowledge |
| 44 | -RST | -Reset |
| 45 | -MSG | -Message |
| 46 | -SEL | -Select |
| 47 | -C/D | -Control or Data |
| 48 | -REQ | -Request |
| 49 | -I/O | -In/Out |
| 50 | GND | Ground |
