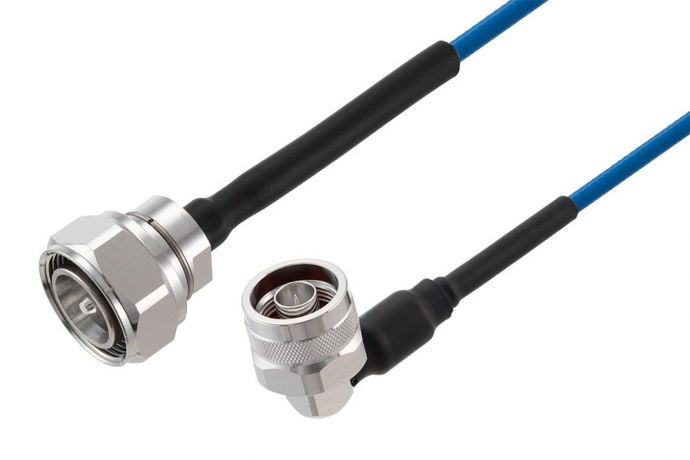

Pasternack 4.3-10 Male to N Male Right Angle Low PIM Cable 24 Inch Length Using TFT-402-LF Coax Using Times Microwave Components
Max Frequency 5.8 GHz | Low PIM: -160 dBc Max | Shielding Effectivity > 80 dB | 76% Phase Velocity | Double Shielded| FEP Jacket | 500 Mating Cycles | 24 Inches
| Quantity Discount Pricing | |||
|---|---|---|---|
| 1-24 | 25-49 | 50-99 | 100+ |
| $62.99 | $60.99 | $56.99 | $52.99 |
Quantity Available: 0
Pasternack 4.3-10 Male to N Male Right Angle Low PIM Cable 24 Inch Length Using TFT-402-LF Coax Using Times Microwave Components
Radio frequency assembly 4.3-10 male to N male right angle low PIM cable 24 inch length using TFT-402-LF coax using Times Microwave components from Pasternack is part of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack low PIM (Passive Intermodulation, also called Intermod for short) coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. 4.3-10 male to N male right angle low PIM cable 24 inch length using TFT-402-LF coax using Times Microwave components, like our other Pasternack coaxial cable assemblies, will ship the same day and any custom 4.3-10 to type N cable assembly orders will ship same day as well.
Pasternack RF coax low PIM cable assembly is built with 4.3-10 cable connection on one end and right angle N type cable connection on the other. Our low PIM 4.3-10 to right angle type N cable assemblies have a male gender on end 1 and male on end 2. This 4.3-10 to N type cable is a male to male coax assembly, PE3C8314-24, can also be known as a low PIM 4.3-10 plug to right angle type N plug cable assembly and will be shipped same-day as it is purchased.
4.3-10 plug to type N plug cable assembly PE3C8314-24 is built with TFT-402-LF which is a flexible coax type. The Pasternack low passive intermodulation flexible 4.3-10 cable assembly is manufactured with 4.3-10 to right angle type N cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this 5.8 GHz maximum frequency low PIM 4.3-10 male to type N right angle male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3C8314-24 can also be used in the other direction and will be right angle N type male to 4.3-10 male cable assembly if the opposite connectivity is required.
- Laboratory Use
- Low PIM Applications
- Indoor and Outdoor Use
- Plenum Rated Applications
