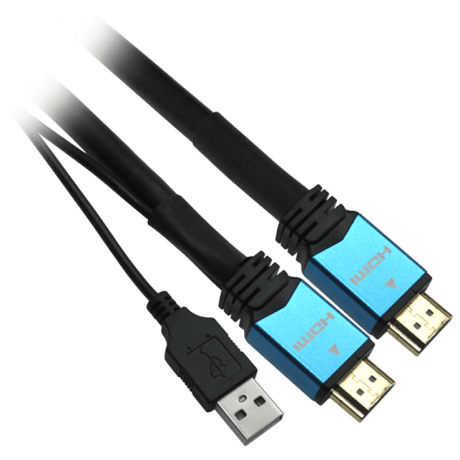

Active Long Distance High Speed HDMI Cable with Equalizer - 26 AWG - 100 FT
This product has been discontinued
Active Long Distance High Speed HDMI Cable with Equalizer - 26 AWG
Need to extend your HDMI setup? ShowMeCables has the solution for you. Standard HDMI cables work great to carry audio and video in High Definition, but for most standard HDMI cables, they may encounter some signal loss after 25 feet in distance. This is where an HDMI with built in equalizer would come into play. These cables not only work with the high speed of 1080p and 4K signals, but they also have a built in equalizer to boost your signal to ensure the audio and video quality stays true to HD for longer distances. Additionally these cables are built with gold-plated connectors to optimize electrical conductivity for maximal data integrity and have an unparalleled high-speed transfer rate to provide you with the most realistic and enjoyable high-definition audio and visual experience.
Typical Applications:
- Audio/video connections in home theater systems.
- High-definition audio/video connections.
- A/V connections over a long range.
Features:
- Supports resolutions up to 4K x 2K (4096 pixels wide by 2160 pixels high) at 60Hz / 18Gbps
- Cable ends are marked "Input" (device side) and "Output" (see picture 2)
- 24K hardened gold contacts
- Three layer high density shielding for quality protection
- Twisted pair construction
- The addition of a HDMI Ethernet Channel allows networking capabilities, combining audio, video, and data all on one cable
- An Audio Return Channel is included to allow the sending of audio data upstream from the TV to a surround sound audio system or A/V receiver, eliminating the need for a separate S/PDIF connection
- The introduction of input / output protocols for 3D Over HDMI paves the way to bringing true 3D gaming and viewing experiences to your home theater
- Support for high video resolutions beyond 1080p (4K x 2K video support). The following formats are supported: 3840 pixels wide by 2160 pixels high, 4096 pixels wide by 2160 pixels high
- Support for 3 additional color spaces deliver sharper and higher quality digital still photography when viewed on an HDTV
- A built-in equalizer to prevent signal loss over longer distances
- USB A Male for that additional boost of power to send the signal the full distance of the cable (Sender side)
- Black color (Cable)
- Blue Metal Hood
- 75 feet length
- 26 AWG wires
- OD: 8.2mm
- BC - Bare Copper
Q: What is HDMI?
A: High-Definition Multimedia Interface (HDMI) is a fully digital audio and video interface. HDMI brings the highest quality video to your home theater. Since HDMI supports both audio and video it simplifies wiring significantly.
Q: What is HDMI with ethernet?
A: The 'with Ethernet' option allows a device that has Internet access to share that connection with another device that isn't directly connected to the Internet. For instance you could have a TV connected directly to the internet then use the HDMI cable with Ethernet to share that internet connection with your Blu-Ray player. Please keep in mind both devices must be Ethernet Sharing compatible for this feature to work. The HDMI with Ethernet cable will still perform normally for HDTV even if an Ethernet signal is not present.
Q: Is HDMI backwards compatible with previous versions?
A: Yes HDMI is fully backwards compatible.
Q: What are the advantages of using HDMI over S-Video or component?
A: The quality of audio and video increases significantly. Images and sounds will be sharper and defined. These benefits are clearly seen ar resolutions like 1080p.
Q: What does the jacket rating CL2 CM and CMP mean?
- CL2 is the standard type of PVC jacket used for low voltage cable. CL2 rated cables are often referred to as in-wall rated cables and can be run almost anywhere except plenums. CL2 is more common for non-professional use.
- CM is standard comminications cabling that is not run in walls or in plenum air spaces.
- CMP is a rating that is given to cables that have passed a stringent burn test and are able to be run through plenum air spaces. Plenum air spaces include drop ceilings and non-ducted HVAC air returns.
