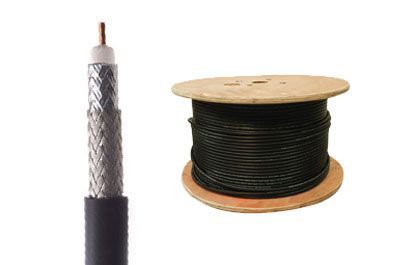

The RG11 PVC coaxial cable is typically used for cable or satellite service. RG11 has an impedance of 75 ohms and is used for the longer runs or backboning premise wiring. This RG11 PVC cable features a solid 14 AWG copper center conductor with a 60% aluminum braid and 100% aluminum foil shield.

Features:

1000 ft. spool
RG11
PVC Jacket
Impedance - 75 ohm
Bare Copper center conductor
Rated for indoor use
3Ghz
UL-Listed

Reviews

Resources

Cable	Cable Type	Jacket	Inner Conductor Material	Inner Conductor Diameter (mm)	Dielectric	Outer Conductor (Shield)	Overall Braid	Bend Radius (mm)	Velocity of Propagation (%)	Dielectric Constant	Impedance	Capacitance	DC Resistance (loop)	Voltage Rating	Frequency Range
80-110-520 BK	RG11	PVC	Cu	1.63	Foam PE	AL foil	AL wire	120 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	30.43 Ohms	60 VDC	3 GHz
80-110-560 BK	RG11	PVC	CCS	1.63	Foam PE	AL foil	AL wire	120 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	63.5 Ohms	60 VDC	3 GHz
80-110-600 BK	RG11	PE	CCS	1.63	Foam PE	AL foil	AL wire	120 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	63.5 Ohms	60 VDC	3 GHz

Specification

Click Here to Download the Spec Sheet
