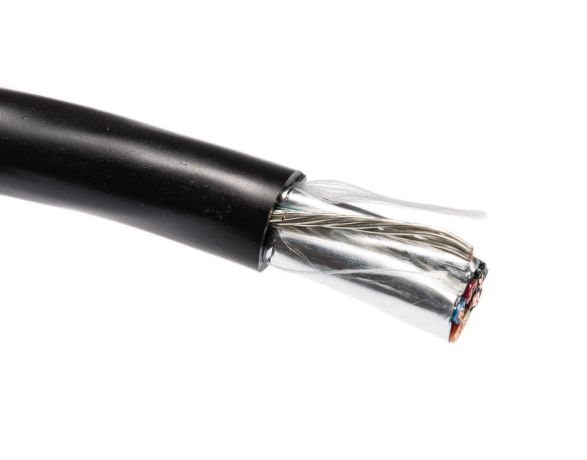

VNTC tray cable is a sturdy and adaptable cable suitable for transmitting power, control, relay or other types of signals in wet, dry or hazardous environments. It is most commonly used for power and control, telemetering, relay control, traffic control, switching, lighting and signal transmission. It is the preferred cable for factory or commercial applications.

VNTC tray cable can be installed in various types of conduit, ducts, raceways, and cable tray systems. It is flame retardant, sunlight resistant, burial rated, chemical and oil resistant and can be used in hazardous environments. It is rated to transmit 600v and has a temperature rating of 167° for wet applications and 194° in dry applications. It is also great for cold weather installations, being rated for both cold bend and cold impact resistance. This cable is suitable for use where shielding is required to reduce electromagnetic interference (EMI).

VNTC tray cable is a rugged cable used for wiring your mission-critical equipment, machinery, and systems.

Features

VNTC (Vinyl Nylon Tray Cable)
18 AWG
6 Conductor
Stranded
Bare Copper
600V
Shielded (Foil Shield Al Mylar)
UV Resistant PVC Jacket
Color Code: ICEA METHOD 1 - TABLE E2 (see Resources Tab)
UL Listed
0.37 Inch OD
Per Foot

Applications

Power and Control
Telemetering
Relay Control
Traffic Control
Switching
Lighting and Signal Transmission

Please note: This product is cut to the length and is not returnable.

Any amount of cable ordered above the maximum continuous length of 1000 FT will be sent in seperate pieces.

Reviews

Resources

Resources Tab

ICEA METHOD 1 - E2 TABLE

CONDUCTOR NUMBER	INSULATION COLOR	STRIPE	CONDUCTOR NUMBER	INSULATION COLOR	STRIPE
1	Black	–	19	Orange	Blue
2	Red	–	20	Yellow	Blue
3	Blue	–	21	Brown	Blue
4	Orange	–	22	Black	Orange
5	Yellow	–	23	Red	Orange
6	Brown	–	24	Blue	Orange
7	Red	Black	25	Yellow	Orange
8	Blue	Black	26	Brown	Orange
9	Orange	Black	27	Black	Yellow
10	Yellow	Black	28	Red	Yellow
11	Brown	Black	29	Blue	Yellow
12	Black	Red	30	Orange	Yellow
13	Blue	Red	31	Brown	Yellow
14	Orange	Red	32	Black	Brown
15	Yellow	Red	33	Red	Brown
16	Brown	Red	34	Blue	Brown
17	Black	Blue	35	Orange	Brown
18	Red	Blue	36	Yellow	Brown

Specification

Technical Specs

CONDUCTORS: Class B stranded bare copper per UL 83 and 62.

INSULATION: Polyvinyl Chloride (PVC) per UL 62 for Type TFFN (16 AWG) or UL 83 for Type THWN or THHN wire, nominal thickness is 15 mils

INSULATION JACKET: Each insulated conductor is jacketed with nylon meeting UL 62 for Type TFFN or UL 83 for Type THWN or THHN wire, minimum thickness is 4 mils

COLOR CODE: ICEA Method 1, Table E-2 (formerly K-2).

ASSEMBLY: Conductors are cabled with fillers where necessary to make round

SHIELD: Aluminum/Mylar helically applied with tinned copper drain wire

OVERALL JACKET: Sunlight resistant polyvinyl chloride (PVC) per UL 1277.

STANDARDS: Meets UL 1277 requirements for Type TC cables having THWN or THHN (TFFN) conductors, cables are listed for direct burial and meet the IEEE 1202, IEE 383 and UL 1685. 70,000 Btu/hr flame tests

AMPACITY: Based on not more than three conductors in raceway or cable or earth with an ambient temperature of 30°C per NEC Table 310.16, the values have been derated where applicable

TEMPERATURE: 90C

VOLTAGE: 600V

**May be used in Class I, Div. 2 and Class II, Div. 2 Hazardous Locations per NEC Art. 501 and 502. These cables also conform to Art. 392 "Cable Trays" and Art 336 "Power and Control Tray Cable." **

Quantity Discount Pricing
1-99	100-249	250-749	750-999	1000+
$2.62	$2.26	$2.07	$1.91	$1.46

18 AWG - 6 Conductor - 600V - Stranded Conductor - Shielded - VNTC Tray Cable - Per Foot
