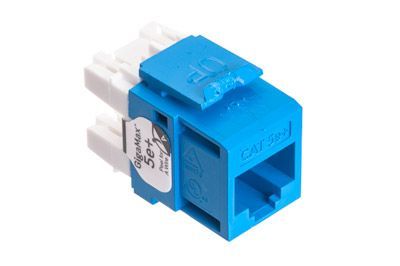

Leviton's Gigamax Cat5e Keystone Jacks are designed and manufactured to the highest standards. These jacks have a high-density profile and work with any keystone high-density patch panels. Color-coded wiring labels show T568A and T568B wiring patterns. IDC connectors are oriented at 180-degrees in order to provide easy rear termination.

Features:

Manufacturer: Leviton
Connector: RJ45
Rear Termination: 110 type IDC
Color: Blue
Exceeds EIA/TIA Cat5e Standard
TSB 568A or 568B UL-Listed

Reviews

Write Your Own Review

You're reviewing:Leviton Gigamax Cat5e RJ45 Punchdown Keystone Jack - High Density - Blue | 5G110-RL5

Nickname

Summary

Review

Resources

TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks
IDC	T568A		T568B
Terminals	Pair	Wire Color	Pair	Wire Color
PIN5	1	White/Blue	1	White/Blue
PIN4	1	Blue	1	Blue
PIN1	3	White/Green	2	White/Orange
PIN2	3	Green	2	Orange
PIN3	2	White/Orange	3	White/Green
PIN6	2	Orange	3	Green
PIN7	4	White/Brown	4	White/Brown
PIN8	4	Brown	4	Brown

Specification

Click Here to Download the Spec Sheet

Quantity Discount Pricing
1-24	25-49	50-99	100-249	250+
$17.99	$17.22	$16.48	$15.20	$14.19
