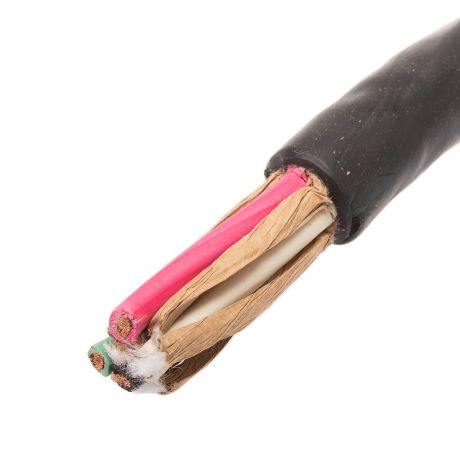

10 AWG - 4 Conductor - 600V - Stranded Conductor - SOOW - Portable Cord - 1000 FT

10 AWG - 4 Conductor - 600V - Stranded Conductor - SOOW - Portable Cord - 1000 FT

SKU

92-600-285:1000

1000 FT | 10 AWG | 4 Conductor | SOOW | 600V | Stranded | Bare Copper | 90°C (194°F) | Meets MSHA Standards | CSA | UL Listed

Be the first to review this product

Quantity Discount Pricing
1-1	2-4	5-9	10-14	15+
$3,190.00	$3,108.80	$3,027.60	$2,934.80	$2,830.40

Quantity Available: 0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Portable cord is a multi-conductor cable used for temporary electrical power connections. Also, referred to as portable cordage, flexible cord, or extension cord the cable is used in a variety of commercial, industrial, and residential applications. Portable cords can be exposed to constant flexing and harsh environmental conditions including temperature extremes as well as oil, chemicals and abrasive materials. Portable Cord is the rugged, yet flexible cable needed for wiring your mission-critical equipment, machinery, and systems.

Features:

SOOW
10 AWG
4 Conductor
Stranded
Bare Copper
600V
90°C (194°F)
EPR Insulation (Ethylene Propylene Rubber)
CPE Thermoset Jacket (Chlorinated Polyethylene)
Meets MSHA Standards
RoHS
CSA
UL Listed
0.715 Inch OD
Black
1000 FT

Applications

Portable Electrical Power and Control Cable
Ground Test
Motor Leads
Industrial Tools
Portable Lights
Battery Chargers
Equipment exposed to Oils, Solvents, Flame, and Grease.

Please note:

Any amount of cable ordered above the maximum continuous length of 1000 FT will be sent in seperate pieces.

This product is not available for UPS/FedEx shipping due to weight over 150lbs. This product must ship via freight truck. Please select Ground Shipping when checking out. ShowMeCables will contact you with freight shipping details. The Ground Shipping paid will apply towards the cost of freight shipping. You can also contact us for a freight quote at 888-519-9505 or Sale@ShowMeCables.com

Reviews

Resources

ICEA METHOD 1, TABLE E1

CONDUCTOR NUMBER	INSULATION COLOR	FIRST STRIPE	SECOND STRIPE	CONDUCTOR NUMBER	INSULATION COLOR	FIRST STRIPE	SECOND STRIPE
1	Black	–	–	26	Orange	Black	White
2	White	–	–	27	Blue	Black	White
3	Red	–	–	28	Black	Red	Green
4	Green	–	–	29	White	Red	Green
5	Orange	–	–	30	Red	Black	Green
6	Blue	–	–	31	Green	Black	Orange
7	White	Black	–	32	Orange	Black	Green
8	Red	Black	–	33	Blue	White	Orange
9	Green	Black	–	34	Black	White	Orange
10	Orange	Black	–	35	White	Orange	Red
11	Blue	Black	–	36	Orange	White	Blue
12	Black	White	–	37	White	Red	Blue
13	Red	White	–	38	Black	White	Green
14	Green	White	–	39	White	Black	Green
15	Blue	White	–	40	Red	White	Green
16	Black	Red	–	41	Green	White	Blue
17	White	Red	–	42	Orange	Red	Green
18	Orange	Red	–	43	Blue	Red	Green
19	Blue	Red	–	44	Black	White	Blue
20	Red	Green	–	45	White	Black	Blue
21	Orange	Green	–	46	Red	White	Blue
22	Black	White	Red	47	Green	Orange	Red
23	White	Black	Red	48	Orange	Red	Blue
24	Red	Black	White	49	Blue	Orange	Red
25	Green	Black	White	50	Black	Orange	Red

Specification

Technical Specs

CONDUCTOR: Bare, annealed copper per ASTM B-3, flexible, bunch stranded per UL 62, a separator may be applied over the conductor
INSULATION: Synthetic rubber per UL 62
COLOR CODE: Per ICEA Method 1, Table E-1 (up to 21/C) except 3/C which is black, white, green
ASSEMBLY: Insulated conductors are cabled with fillers as necessary to make round, a separator is applied over the assembly
OVERALL JACKET: Black, oil-resistant thermoset compound per UL 62
STANDARDS: Meets the UL 62 requirements for Type SOOW, also meets CSA requirements for Type SOOW, accepted by MSHA and printed with the manufacturer's P number
AMPACITY: Based on a 30°C ambient temperature per 2008 NEC Table 400.5(A), the values are derated (where applicable) according to 2008 NEC Article 400.5
TEMPERATURE: 90°C
VOLTAGE: 600 V
