Wire Distribution Spool - Machine Screw

SKU
93-260-123
Dimensions: 3 x 1 3/4 Inch | Mounts to: Wood, Steel, & Concrete | 12/24 Machine Screw | Plastic
Quantity Discount Pricing
1-49 50-99 100-199 200-299 300+
$1.17 $1.13 $1.12 $1.10 $1.05

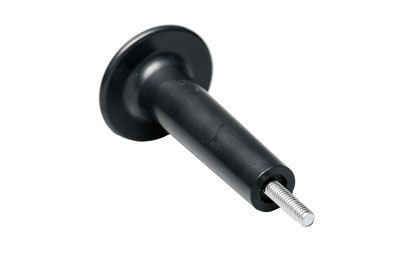

Wire Distribution Spool - Machine Screw

This Distribution Spool is designed to help organize and direct wires along a wall or on a rack. The durable plastic post includes a 12-24 machine screw injection molded into the base and will fit most server and communication racks. The design of this spool allows for quick and easy cable modifications after installation if needed.

Features:

  • Dimensions: 3 Inch x 1 3/4 Inch
  • Mounts to: Wood, Steel, and Concrete
  • Assists in Steering Cables to Devices
  • Quick & Easy Cable Modifications
  • 12-24 Machine Screw Included
Write Your Own Review
You're reviewing:Wire Distribution Spool - Machine Screw
Your Rating

Q: How much distance should I put between each of my cable supports?


A: You don’t want to put too much weight on any type of cable support. It is a good idea to put a cable support such as a J-Hook or Bridle Ring every 4 to 5 feet. This ensures that your cables will not stretch or fall under too much weight.


Q: What kind of support do I need for data cabling?


A: When you are dealing with sensitive high performance data cables such as fiber optic cables you need to use either J-Hooks or Bridle Rings with saddles. For all other cable types you can use any type of cable support such as standard Bridle Rings or D-Rings.
