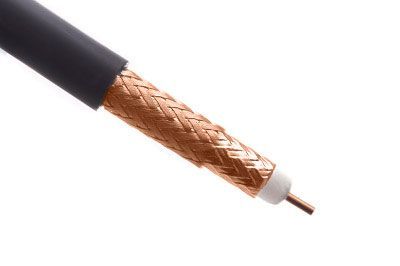

ECore RG59 95% Shield Coax Cable - BC

80-590-130 XX

RG59 | 75 Ohm | 20 AWG | Shielded | PVC | CM/CL2 Rated | Bare Copper Conductor | UL & ETL Listed

100% of 100

RG59 is commonly used for CCTV, lower power video such as composite video, and RF connections. This cable features a UL listed CL2 PVC jacket. Internally this cable is protected from RFI and EMI interference by a 95% copper braid shield. The center conductor is made from 20 AWG solid copper. RG59 is commonly terminated with an F-Type, BNC, or RCA connector.


  • 75 Ohm
  • 20 AWG Bare Copper Conductor
  • 95% Copper Braid Shield
  • PVC Jacket
  • CM/CL2 Rated
  • UL/ETL Listed
  • Professional Grade
  • Foot Markings
Write Your Own Review
You're reviewing:ECore RG59 95% Shield Coax Cable - BC
Your Rating
Features & Specs
Cable TypeThe type of cable described?RG59 95% Shield
ImpedanceImpedance of cable?75 ohms
Center ConductorThe type of material used in the center conductor of the cable??Bare Copper (BC)
Center Conductor DiameterDiameter of center conductor in inches?.025'
DielectricMaterial used as dielectric in the cable??Foam PE (Polyethylene)
Jacket MaterialThe type of material used in the jacket of the cable?Polyvinyl chloride (PVC)
Cable DiameterDiameter in inches of cable?.24'
