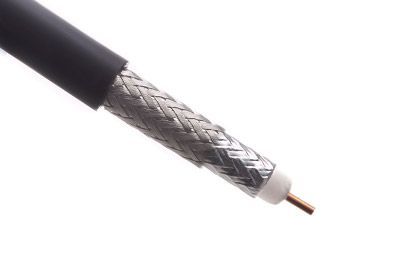

ECore - EMR-240 - Low Loss LMR-240 Equivalent Coaxial Cable - Black

SKU
80-150-240 XX
50 Ohm | .240 OD | BC Conductor | PE Jacket | Indoor/Outdoor Rated | RG-58X Replacement

ECore Low Loss 240 is designed to deliver high performance with minimal loss.  ECore Low Loss 240 is a LMR-240 equivalent and high quality alternative to RG-8X. For example at 2.4 GHz, 100 feet of RG-8X would have 22.8dB of signal loss versus only 13.1dB of signal loss with ECore low loss 240. With a durable Polyethylene jacket, these cables are suited for indoor and outdoor installations. ECore low loss 240 is light and flexible.  The ECore low loss 240 is acceptable for Wi-Fi, Antenna Cables, Ham Radio, Patch Cables, Jumper Cables and much more.

Features:

  • Cable Type: EMR-240
  • Impedance: 50 ohm
  • Center Conductor: Bare Copper (BC)
  • Jacket: Polyethylene (PE)
  • Outer Diameter: .240 inch
  • Indoor/Outdoor Rated
  • Drop-in replacement for RG-8X
  • Attenuation @ 900 MHz/100 ft: 7.6dB/100ft
  • Attenuation @ 2.4 GHz/100 ft: 13.1dB/100ft
  • Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable
  • Max Continuous Length: 1000 FT

    LMR® is a Registered Trademark of Times Microwave Systems.

    Please note: All products that are bought per foot are non-returnable.

    Any amount of cable you order above the maximum continuous length of 1000 FT will be sent in separate pieces.
