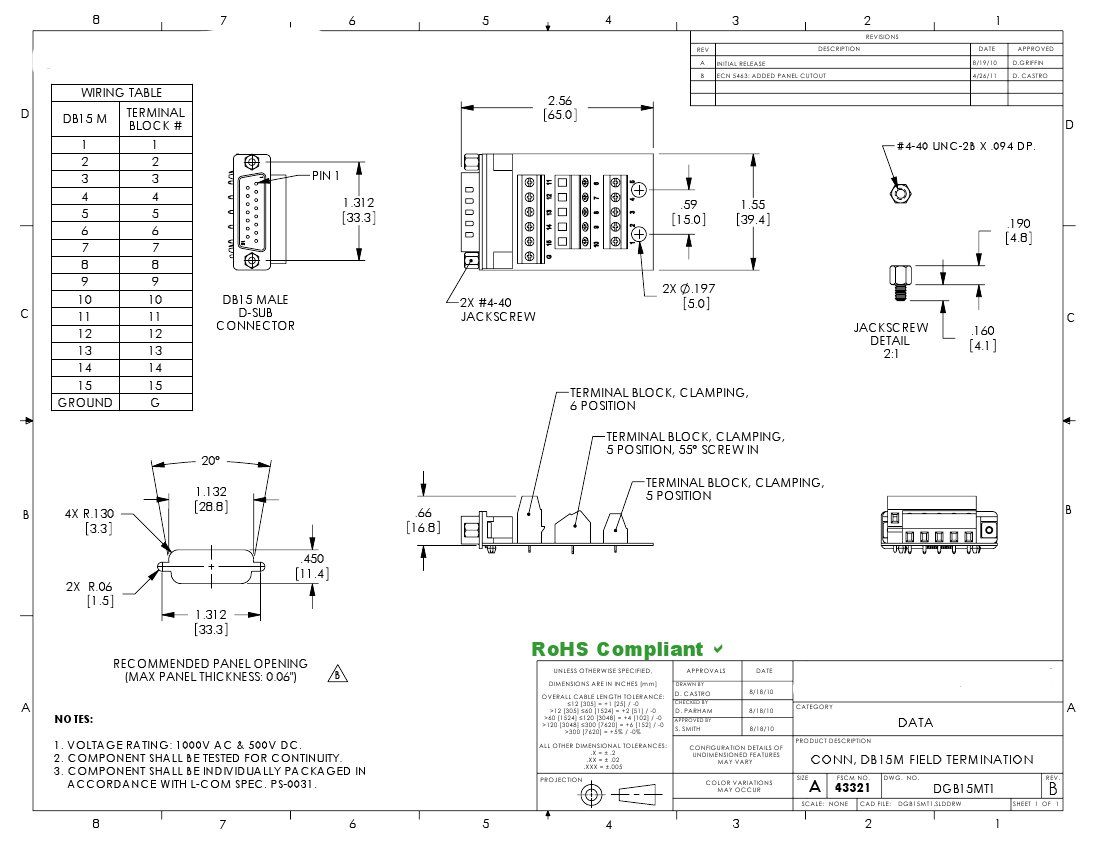

DB15 Male Terminal Block Panel Mount Connector
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $24.99 | $24.99 | $24.79 | $24.59 | $24.39 |
These DB15 Male Terminal Block Panel Mount Connectors are used to terminate any cable in the field with a custom pinout in a fast and easy way. This solderless connector fits into installs where depth is a problem, and it provides a reliable connection for all applications with no special tools. These connectors are made with high-quality materials to ensure durability and a long life.
Feature:
- DB15 Male
- 15 Pins
- Easy Termination with No Soldering or Crimping
- Quick and Simple Wiring
- Gold-Plated Contacts
- Tinned Copper Shell
- Nickel Thermoplastic Insulator
Product Questions
What are D-Sub connectors?
D-Sub connectors are named after their D-shaped form. They come in a variety of pin numbers to fit your computer application needs.
Are D-Sub and Serial Connectors the same?
Yes they are the same thing.
What are the advantages of using a solder connector?
When using solder connectors it is a more permanent solution as compared to crimp connectors. You do not have to worry about pins being pulled out on solder connectors which can happen in crimp connectors. For this reason soldering can be more reliable.
What are the advantages of using a crimp connector?
Using crimp connectors is often just as reliable as solder connectors but they takes less time to install. Installation is as simple as squeezing a crimping tool to secure the connection.
What are the benefits of using a plastic metalized plastic or metal hood for my connector?
Plastic hoods are the most economical option when constructing D-Sub connectors. Metalized plastic hoods provides shielded against EMI/RFI interference while still being an economical option. Metal hoods provide durability as well as shielding against EMI/RFI interference.
What all do I need to assemble a DB9 Connector?
You only need a few things to make a DB9 Connector. There are two types you can choose from; solder type or crimp type.
Solder Type: To make a solder type connector you will need either a male or female solder type connector a DB9 hood (metal or plastic depending on our preference) a DB9 grommet and a soldering iron.
Crimp Type: To make a crimp type connector you will need either a male or female crimp type connector D-Sub crimp pins to match the gender of your connector a DB9 hood (metal or plastic depending on our preference) a DB9 grommet and a D-Sub crimp tool.
It is rather simple but rather than having to buy each individual item to assemble your connector we offer kits in all the D-Sub connector types to make it easier on you. You can buy it unassembled or you can have us assemble it for you.
| Signal Name and Abbreviation | DB25 Pin | DB9 Pin | Direction | DB9 Pin | DB25 Pin | Signal Name Abbreviation | |
|---|---|---|---|---|---|---|---|
| Frame Ground | FG | 1 | – | – | 1 | FG | |
| Transmitted Data | TxD | 2 | 3 | → | 2 | 3 | RxD |
| Received Data | RxD | 3 | 2 | ← | 3 | 2 | TxD |
| Request to Send | RTS | 4 | 7 | → | 8 | 5 | CTS |
| Clear to send | CTS | 5 | 8 | ← | 7 | 4 | RTS |
| Signal Ground | SG | 7 | 5 | 5 | 7 | SG | |
| Data Set Ready | DSR | 6 | 6 | ← | 4 | 20 | DTR |
| Data Carrier Detect | DCD | 8 | 1 | ||||
| Data Terminal Ready | DTR | 20 | 4 | → | 1 | 8 | DCD |
| 6 | 6 | DSR | |||||
| Signal Name | DB25 Pin | DB9 Pin | Direction |
|---|---|---|---|
| Protective Ground | 1 | – | |
| Transmitted Data | 2 | 3 | → |
| Received Data | 3 | 2 | ← |
| Request to Send | 4 | 7 | → |
| Clear to Send | 5 | 8 | ← |
| Data Set Ready | 6 | 6 | ← |
| Signal Ground | 7 | 5 | |
| Data Carrier Dectect | 8 | 1 | ← |
| Data Terminal Ready | 20 | 4 | → |
| Ring Indicator | 22 | 9 | ← |
| DB37 Pin | DB25 Pin | DB15 Pin | DB9 Pin |
|---|---|---|---|
| 1-1 | 1-1 | 1-1 | 1-1 |
| 2-2 | 2-2 | 2-2 | 2-2 |
| 3-3 | 3-3 | 3-3 | 3-3 |
| 4-4 | 4-4 | 4-4 | 4-4 |
| 5-5 | 5-5 | 5-5 | 5-5 |
| 6-6 | 6-6 | 6-6 | 6-6 |
| 7-7 | 7-7 | 7-7 | 7-7 |
| 8-8 | 8-8 | 8-8 | 8-8 |
| 9-9 | 9-9 | 9-9 | 9-9 |
| 10-10 | 10-10 | 10-10 | |
| 11-11 | 11-11 | 11-11 | |
| 12-12 | 12-12 | 12-12 | |
| 13-13 | 13-13 | 13-13 | |
| 14-14 | 14-14 | 14-14 | |
| 15-15 | 15-15 | 15-15 | |
| 16-16 | 16-16 | ||
| 17-17 | 17-17 | ||
| 18-18 | 18-18 | ||
| 19-19 | 19-19 | ||
| 20-20 | 20-20 | ||
| 21-21 | 21-21 | ||
| 22-22 | 22-22 | ||
| 23-23 | 23-23 | ||
| 24-24 | 24-24 | ||
| 25-25 | 25-25 | ||
| 26-26 | |||
| 27-27 | |||
| 28-28 | |||
| 29-29 | |||
| 30-30 | |||
| 31-31 | |||
| 32-32 | |||
| 33-33 | |||
| 34-34 | |||
| 35-35 | |||
| 36-36 | |||
| 37-37 | |||
